Hauler Hydraulic Sand And Slurry Pump
Powerful Hydraulic Solutions: The Hauler Hydraulic Sand and Slurry Pump
The Hauler Hydraulic Sand and Slurry Pump, manufactured by DAE Pumps in Saudi Arabia, is designed for durability and high efficiency, making it ideal for handling tough materials and large-scale dredging projects. Capable of moving up to 2,000 cubic meters of solids per hour, this pump easily tackles demanding tasks. Its innovative non-clogging suction design handles solids up to 3.9 inches in diameter, discharging through a 16-inch outlet with solids content up to 30%. As part of DAE Pumps’ extensive hydraulic lineup, the Hauler is recognized for its adaptability and superior performance.

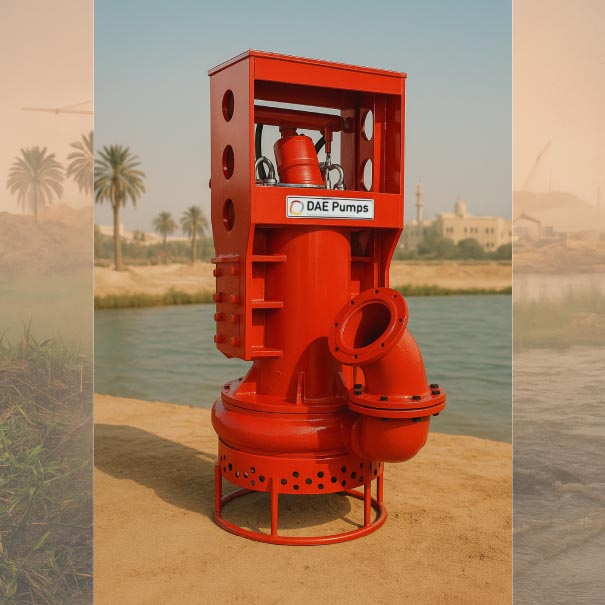

Flexible and Efficient Pumping for Challenging Jobs
The Hauler Hydraulic Pump for Slurry Saudi Arabia is engineered for versatility and efficiency, making it indispensable for various dredging applications. It can be deployed via cable suspension or mounted on excavators, providing operational flexibility to meet diverse project needs. Customization options, such as agitators or water jetting rings, enhance its ability to break down organic materials, including aquatic weeds, ensuring continuous operation and maximizing versatility.
Key Features of the Hauler Hydraulic Sand & Slurry Pump
Durability and Resistance
Built for high abrasion resistance and extended operational life.
Size Options
Available in sizes ranging from 3 to 16 inches to suit various applications.
High Capacity
Moves up to 2,000 cubic meters of solids per hour, ideal for large-scale tasks.
Solid Handling
Efficiently pumps materials with up to 30% solids content.
Durability
Performs reliably at depths up to 250 meters.
Powerful Hydraulic Motor
Delivers strong torque with dependable long-term performance.
The hauler hydraulic pump for slurry in Saudi Arabia is renowned for its exceptional adaptability and capability, making it an ideal choice for the most demanding dredging and dewatering projects.
Saudi Dredge

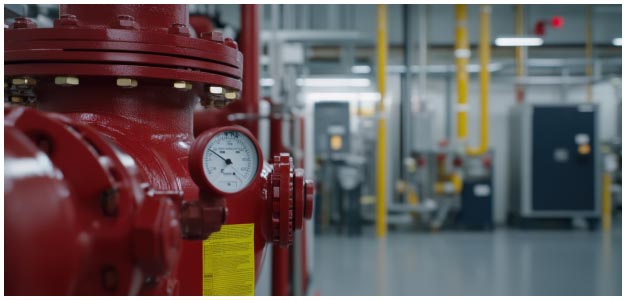

Technical Specifications
- Max Capacity: 2,860 GPM (650 m³/h)
- Max Head: 89.5 ft (27 m)
- Impeller Diameter / Type: 16” (405 mm) / 3-Blade Closed
- Discharge Size: 12” (300 mm)
- Solid Handling: 3.6” (90 mm)

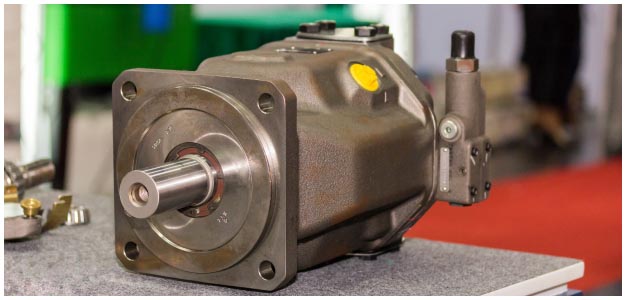

Materials
- Casing: Spheroidal Cast Iron EN-GJS500-7 (EN 1563)
- Motor Housing: Cast Iron EN-GJL-250 (EN 1561)
- Wear Parts: High Chrome EN-GJN-HV600 (XCr18) (EN 12513)
- Main Shaft: High Tensile Steel 39NiCroMo3 (AISI 9840)

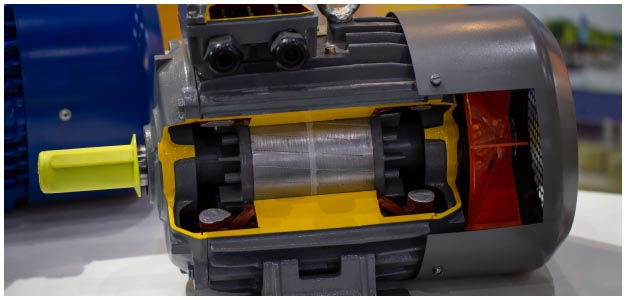

Motor Details
- Displacement: 9.8 cu. in. (160 cc)
- Max Oil Flow: 72 GPM (270 l/min)
- Max Pressure: 4,351 PSI (300 bar)
- Power: 185 HP (475 kW)
- Speed: 1,450 RPM

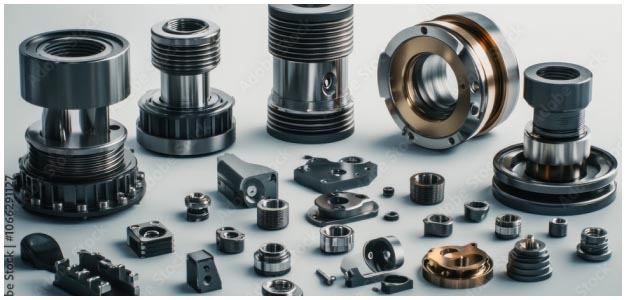

Seals & Lubrication
- Motor Side Seals: 2 Lip Seals (BUNA)
- Impeller Side Seals: 5 Lip Seals (3 BUNA + 2 PTFE) + 1 V-ring (TPU)
- Oil Type: ISO 320

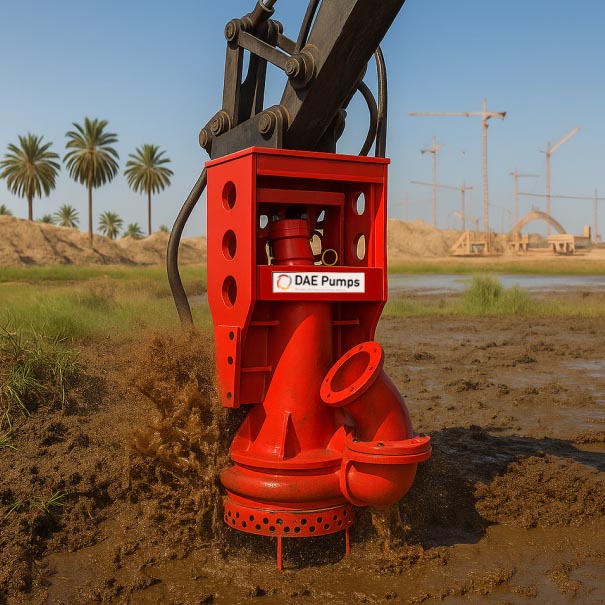

Comprehensive Dewatering Solutions at Saudi Dredge
At Saudi Dredge, we provide more than just pumps — we deliver comprehensive solutions tailored to your dewatering needs. Our pumps are valued for durability and efficiency, supported by a wide range of products designed to meet diverse operational demands. With sealed, modular designs, our pumps ensure easy installation and maintenance, delivering reliable, trouble-free performance. This commitment to quality and user satisfaction makes Saudi Dredge the preferred supplier for hydraulic slurry pumps in Saudi Arabia and other dewatering applications.
Related Equipment

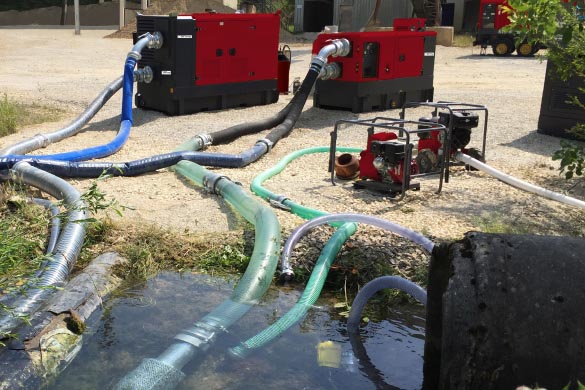

Dewatering Pumps
