A-Frame Mini Dredge

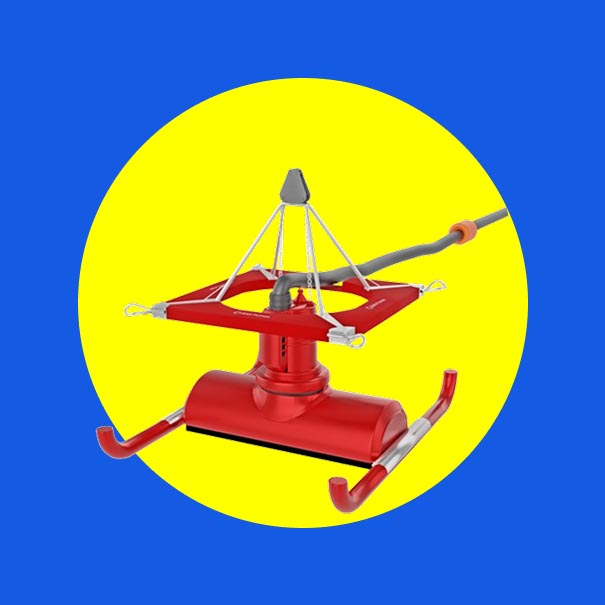

Compact A-Frame Dredging Solutions for Saudi Projects
The A-Frame Mini Dredge in Saudi Arabia is a powerful, compact dredging system designed for the efficient removal of silt, sediment, sludge, and sand. Ideal for lakes, ponds, lagoons, rivers, and canals, this Mini Dredge with A-Frame Saudi Arabia enhances water depth, improves dock access, and restores the aesthetics of small water bodies. It’s a cost-effective tool for shallow water maintenance and sediment control, offering a straightforward and reliable solution for local dredging needs.
Core Components of the Portable A-Frame Dredge
Submersible Slurry Pump
At the center of this compact dredging equipment, Saudi Arabia is a high-performance submersible slurry pump by DAE Pumps. Built from wear-resistant high-chrome metal, it handles large volumes of abrasive materials, such as sediment and sand. Its industrial-grade impeller, volute, and casing ensure longevity, making it ideal for demanding dredging environments across Saudi Arabia's waterways.
A-Frame Raft System
This portable A-Frame dredge, Saudi Arabia, features a durable foam-filled raft designed for stability and mobility. It keeps the pump afloat at the ideal depth while allowing precise vertical adjustments using a heavy-duty chain system. This flexibility ensures efficient material removal regardless of water conditions or terrain.
Pulley Dredge Kit
The complete pulley dredge kit includes everything needed to operate the system effectively. It comes with double-braided nylon rope, rugged stakes and pulleys, high-tensile chains, and connection links. Lay-flat hoses and floats are also available to complete your setup. For larger projects, optional packages include erosion control accessories, such as straw wattle and additional stakes.

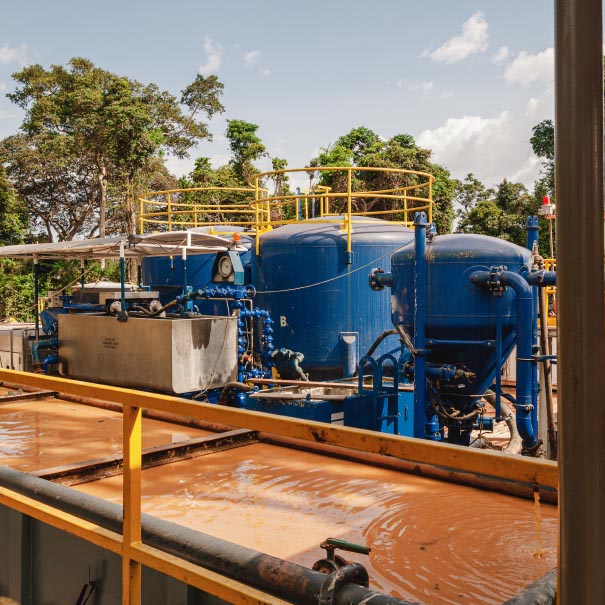

Efficient Sediment Removal for Saudi Projects
Enhance your dredging efficiency with the Mini Dredge featuring an A-Frame in Saudi Arabia. This smartly engineered solution is perfect for deepening shallow waterways and enhancing the visual and functional quality of ponds and canals. It excels in removing sediment and organic buildup with ease and precision.
Saudi Dredge is proud to offer localized support and supply of this versatile system. Contact us to request a quote and elevate your shallow dredging projects with reliable, user-friendly equipment.
System Features Overview
Pump
- Non-Clogging Pump: Handles 15%–30 % solids
- Ideal for Abrasive Material: Designed for sand and sediment
- High Chrome Construction: Durable and low maintenance
Rope
- Double-Braided Nylon with 4400 lbs. Minimum Break Load
Raft
- Lightweight and Strong
- Polyethylene-Filled, Oil-Resistant
- Galvanized Steel Framework
Stakes & Pulley
- Heavy-Duty Eyelet Stakes
- Durable Pulley System for Consistent Operation
A-Frame Mini Dredge Kit Options
Mini Dredge Kit 455
- Motor: 7.5 HP
- Flow Rate: 594 GPM
- Capacity: 35–45 cubic yards per hour
- Protection: Ductile Iron Pump Casing
- Components: Chromium Iron Impeller, Wear Plate, Agitator
- Power Cord: 150-ft
Mini Dredge Kit 475
- Motor: 10 HP
- Flow Rate: 655 GPM
- Capacity: 40–50 cubic yards per hour
- Protection: Ductile Iron Pump Casing
- Components: Chromium Iron Impeller, Wear Plate, Agitator
- Power Cord Options: 150-ft or 300-ft
Mini Dredge Kit 4110
- Motor: 15 HP
- Flow Rate: 819 GPM
- Capacity: 55–65 cubic yards per hour
- Protection: Ductile Iron Pump Casing
- Components: Chromium Iron Impeller, Wear Plate, Agitator
- Power Cord Options: 150-ft or 300-ft
Related Equipment

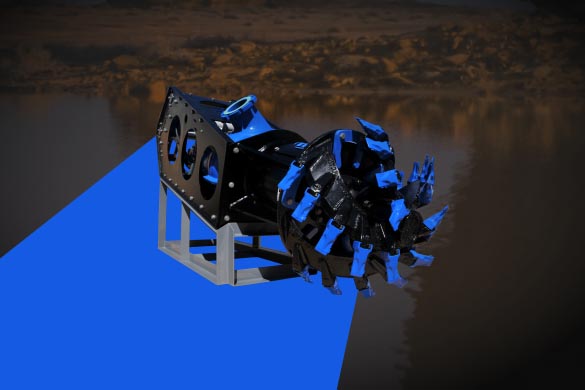

Dredging Equipment for Saudi Operations
Explore our comprehensive selection of compact dredging equipment in Saudi Arabia, specifically designed for local sand, mineral, and sediment management. Built for endurance, our systems feature advanced designs and user-friendly operation, ensuring high efficiency and low downtime. Count on Saudi Dredge to supply dependable dredging tools suited for both municipal and industrial projects.
